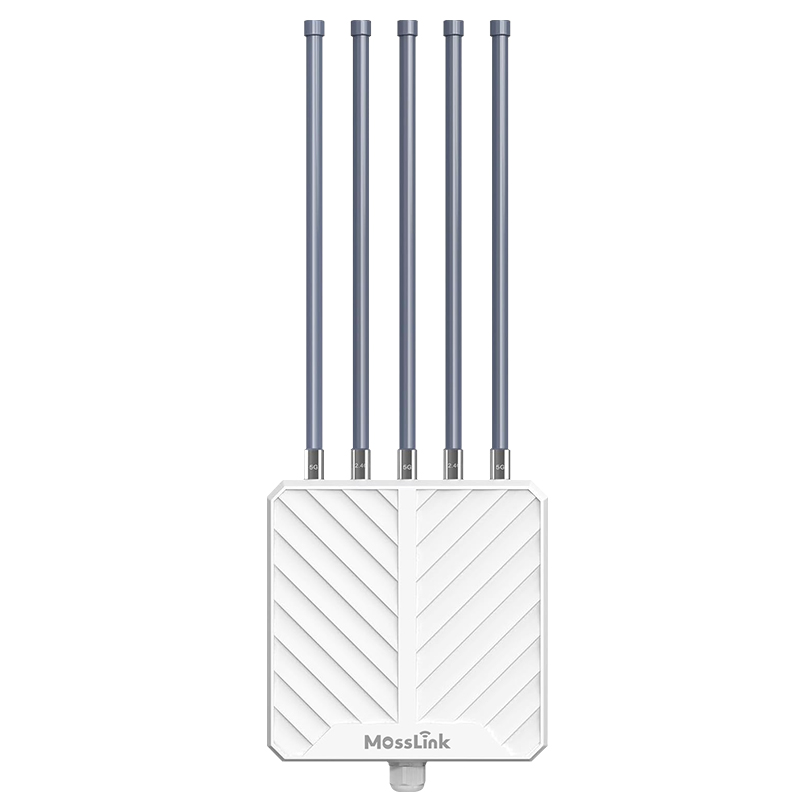

APM6-AX3000 Wi-Fi 6 Outdoor Access Point, IP67, 5×8dBi Antennas

APM6-AX3000

Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7621AT + MT7905N + MT7975DN
RAM 256MB
View all specifications →

5 Years Warranty

Talk via WhatsApp

Specifications

Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7621AT + MT7905N + MT7975DN
RAM 256MB
Antenna 5× 8dBi External Omni
Ethernet 1× GbE WAN (PoE)
PoE 802.3AF/AT Active + Passive PoE
Max Clients 200+
Enclosure IP67 Outdoor Rated
Working Mode Mesh / AP / Router / Repeater
Temperature -40°C ~ +70°C

Features

  • Wi-Fi 6 dual-band AX3000 — 574Mbps @ 2.4GHz + 2402Mbps @ 5GHz
  • IP67 weatherproof with 15kV ESD and 4kV lightning protection
  • Five 8dBi high-gain omnidirectional antennas, 300–500m coverage range
  • Supports 200+ concurrent clients with 256MB memory
  • Mesh, AP, Router, Repeater, and AP+Repeater operating modes
  • Seamless Wi-Fi roaming with Mesh technology
  • QoS, MAC filtering, and IPv6 support
  • Supports 802.3AF/AT active PoE and passive PoE

The APM6-AX3000 is a dual-band Wi-Fi 6 outdoor access point with five 8dBi high-gain antennas providing 300–500m outdoor coverage. In an IP67-rated enclosure with 15kV ESD and 4kV lightning protection, it supports 200+ concurrent clients across Mesh, AP, Router, and Repeater modes — designed for long-range rural, agricultural, and large community deployments.

Ideal For

  • Farms, rural communities, and village-level outdoor Wi-Fi
  • Large residential compounds and apartment complex perimeters
  • Campgrounds, parks, and scenic outdoor areas
  • Street-level public hotspot deployments
  • Smart city and outdoor IoT connectivity projects

Deployment Advantages

Five 8dBi omnidirectional antennas combined with dual high-power amplifiers deliver signal range that significantly exceeds standard 2–4 antenna designs. IP67 protection provides complete dust and submersion resistance — one step beyond IP65 — ensuring reliability in coastal environments, high-humidity climates, or locations where equipment may be exposed to temporary flooding.

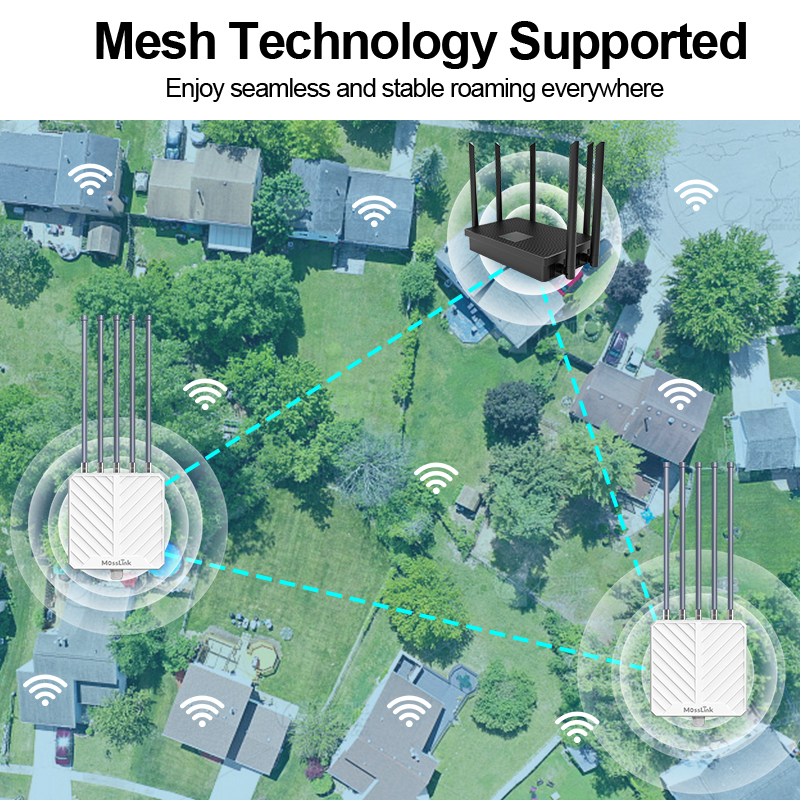

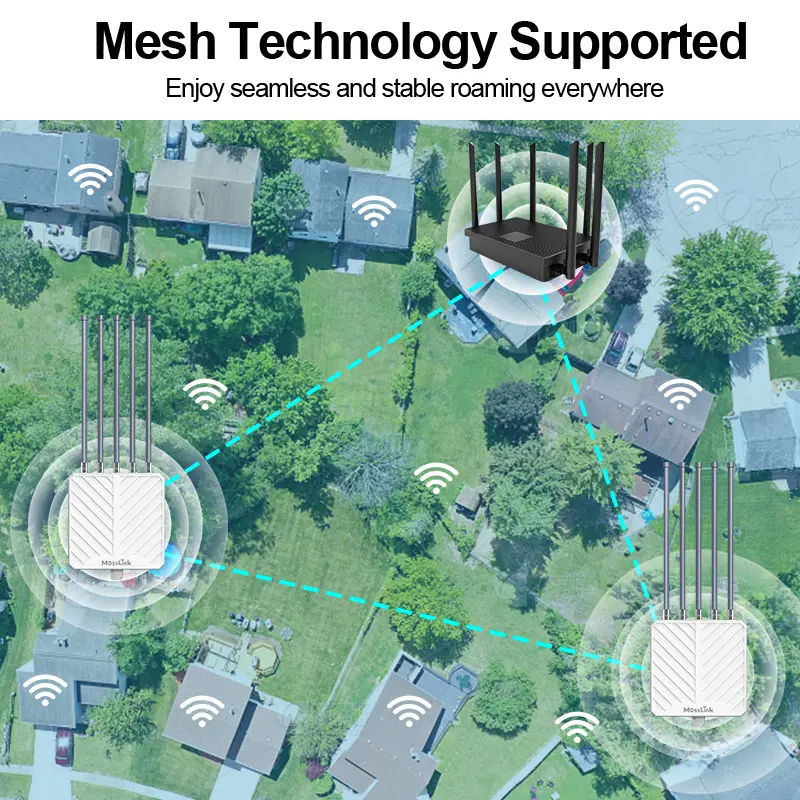

Mesh mode enables seamless network expansion without complex configuration: additional units can be added to extend coverage while maintaining a single SSID and password. QoS priority management and MAC filtering allow network operators to manage bandwidth allocation and access control for large user populations in public hotspot scenarios.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware, antenna count and specification changes, enclosure branding, and private-label packaging. Volume pricing is available for ISPs, community Wi-Fi operators, and rural broadband projects. Contact us to discuss your project requirements.

Frequently Asked Questions

What is the coverage range of the APM6-AX3000?
Equipped with five 8dBi omnidirectional antennas and dual built-in high-power amplifiers, the APM6-AX3000 delivers outdoor coverage up to 300–500 metres in line-of-sight conditions, making it suitable for farms, large communities, and open outdoor areas.
Can the APM6-AX3000 support over 200 devices simultaneously?
Yes. The APM6-AX3000 is engineered to support 200+ simultaneous connections with 256MB memory. Features like QoS, MAC filtering, and Wi-Fi 6 OFDMA ensure stable performance even in high-density environments such as smart homes, outdoor hotspots, and public spaces.
What modes does this access point support?

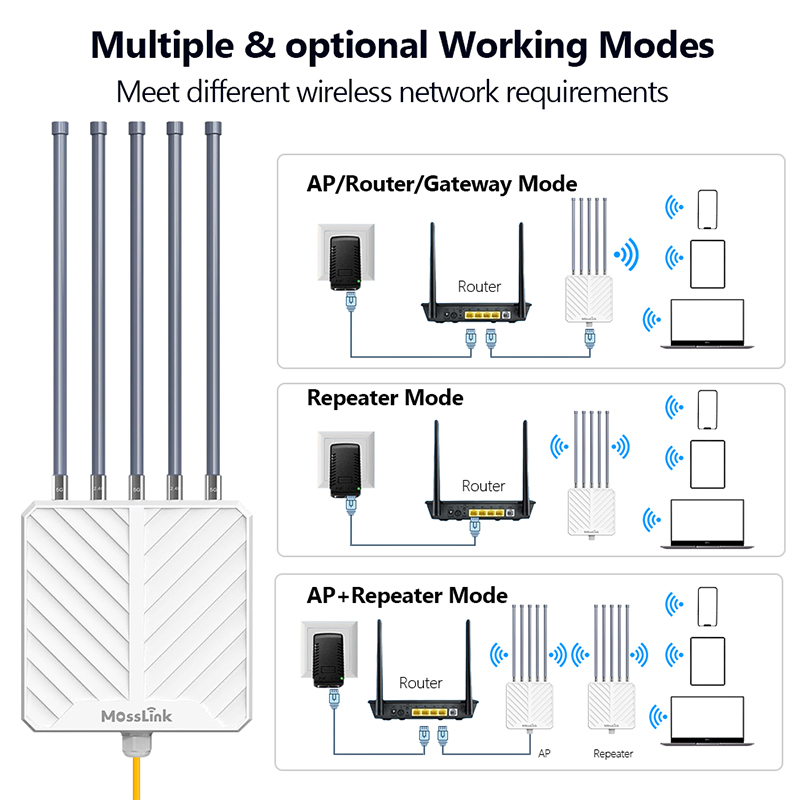

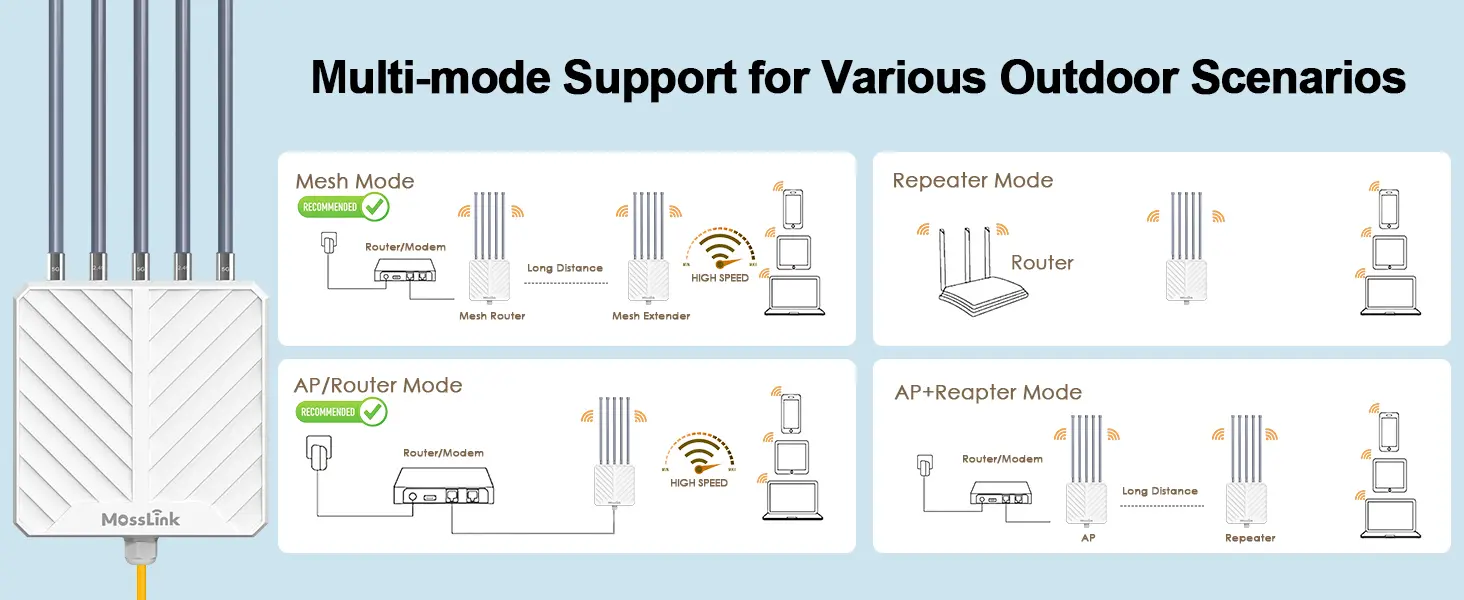

The APM6-AX3000 supports Mesh Extender, AP, Router, Repeater, and AP+Repeater modes. Under Mesh mode, multiple units share a single SSID for seamless roaming. Router and AP modes handle wired-to-wireless conversion for diverse deployment scenarios.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
