WB730 5.8GHz 900Mbps 5KM Outdoor Wireless Bridge, Dual Gigabit, Round Housing
WB730
5 Years Warranty
Specifications
| Type | 5.8GHz Outdoor PtP/PtMP Wireless Bridge |
| CPU | MT7621AT + MT7612EN, 128MB DDR2, 8MB Flash |
| Standard | IEEE 802.11a/n/ac (5.8GHz) |
| Antenna | Built-in 14dBi Dual-Polarized Directional |
| Max Speed | 900Mbps |
| TX Power | 25dBm ±2dBm |
| Range | 0–5km (LoS) |
| Ethernet | 2× Gigabit RJ45 (PoE Supported) |
| Power | DC 12V or 24V PoE |
| Power Consumption | <10W |
| Digital Display | 1× Digital Display + 1× Reset/Digital Pairing Button |
| Max Connected IPC | 20 channels |
| Enclosure | IP65, 2kV Lightning Protection, Round Housing |
| Dimensions | Φ200 × 131 mm |
| Weight | <1kg |
| Temperature | -20°C ~ +55°C |
Features
- 900Mbps 5.8GHz 802.11ac with MT7621AT for stable 5km PtP/PtMP links

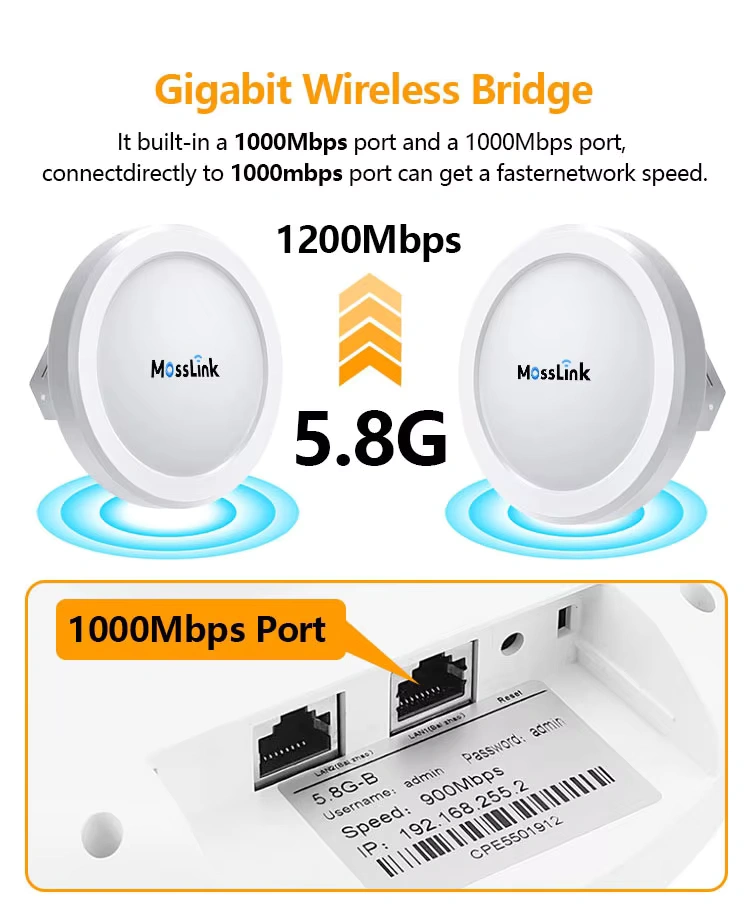

- Dual 10/100/1000Mbps Gigabit ports for full-speed wired backhaul
- Supports up to 20 simultaneous IP camera channels without lag
- Round circular housing for optimized antenna performance and extended range

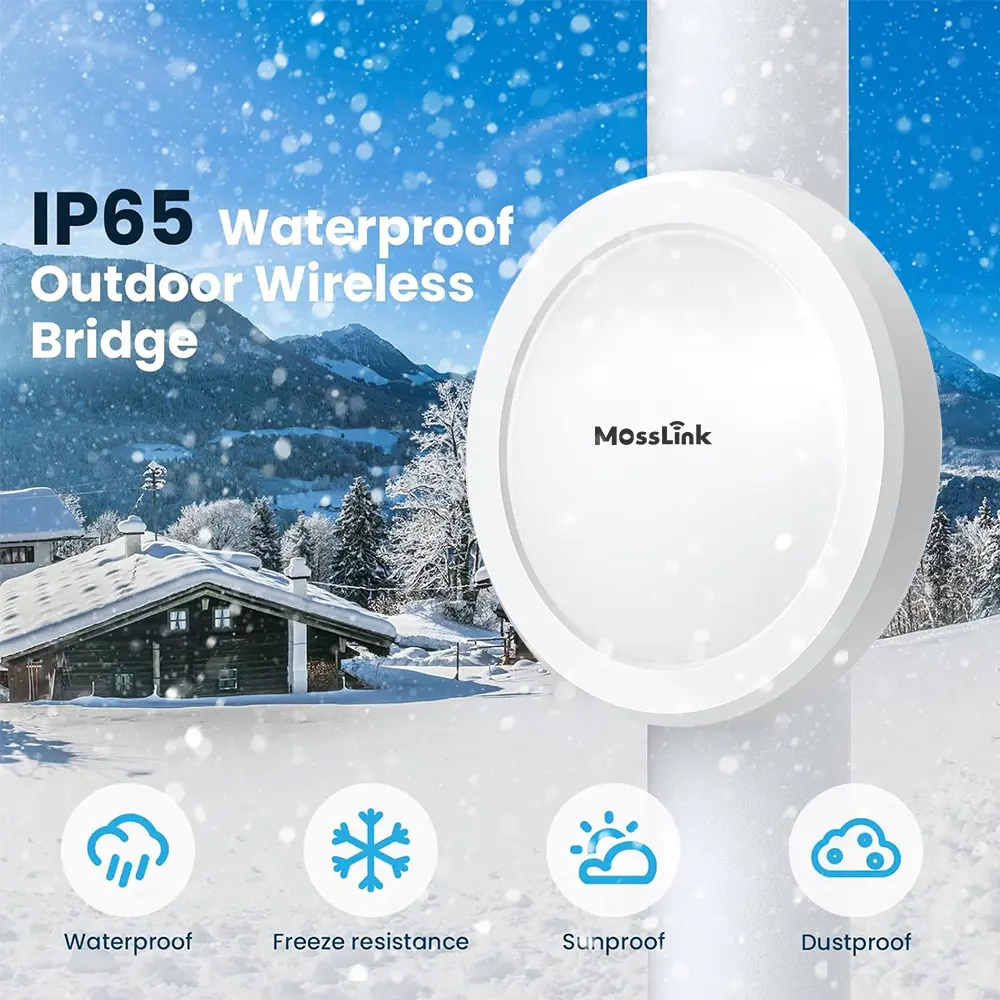

- IP65 weatherproof with 2kV lightning protection
- Digital display and AB dial pairing for plug-and-play setup
- Wide power: DC 12V or 24V PoE for flexible installation
The WB730 is a 5.8GHz outdoor wireless bridge in a round circular housing with a built-in 14dBi dual-polarized directional antenna, delivering 900Mbps over 5km. Powered by MT7621AT + MT7612EN with 2× Gigabit Ethernet ports, 20-channel IP camera support, digital display dial-pairing, 2kV lightning protection, and IP65 weatherproofing, it is designed for HD CCTV backhaul, campus and industrial networking, elevator monitoring, scenic area coverage, and community wireless infrastructure.
Ideal For

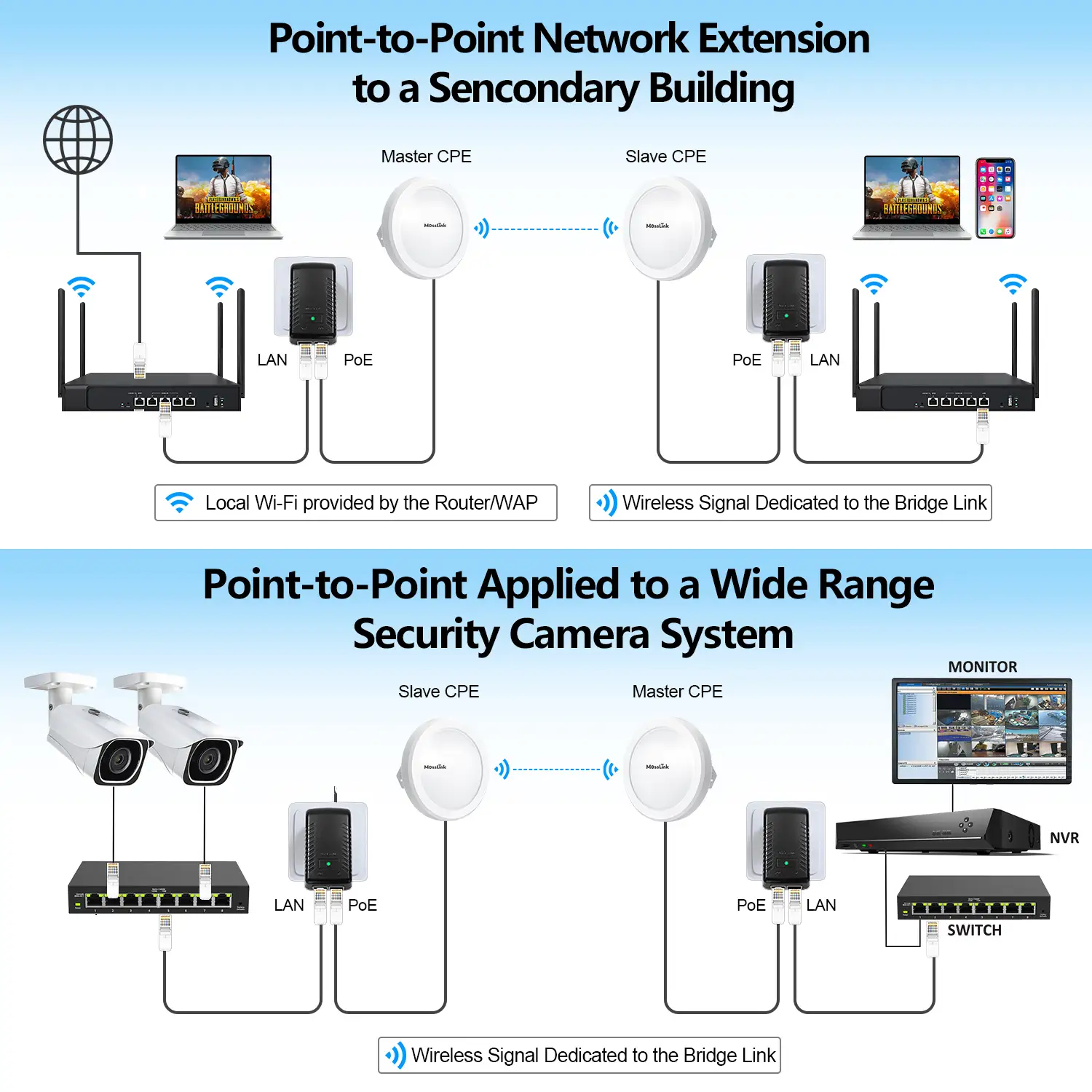

- HD IP camera CCTV backhaul with up to 20 simultaneous camera channels
- Campus perimeter and community area wireless surveillance links
- Industrial facility and construction site wireless data backhaul
- Elevator and vertical shaft monitoring with wireless data transmission
- Dock, coastal, and scenic area wide-range wireless networking
Deployment Advantages
The round circular housing optimizes antenna beam efficiency and reduces wind load compared to flat-panel housings of equivalent aperture, contributing to stable performance at the 4–5km distances where link margin is most critical. Dual Gigabit ports enable simultaneous upstream switch and downstream device connection at both ends without additional switching hardware.
Support for 20 simultaneous IP camera channels makes a single WB730 pair sufficient for a comprehensive CCTV installation at most medium-scale sites. The MT7621AT dual-core platform provides the processing headroom for multi-stream video backhaul with low latency under sustained load.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for CCTV integrators, ISPs, and wireless equipment distributors. Contact us to discuss your project requirements.
